Market

Dry Merchandisers Refrigerated Merchandisers Heated Displays Gondolas Registers Freezers Produce Displays Air Curtain Merchandisers Display Cases

Dry Merchandisers

APTU

Cabinet made of 15mm laminated MDF
Minifix mounting system
Customizable top sticker
LED lighting
Adjustable legs
Inclined wire shelves, structured with galvanized steel brackets
3mm rear mirror
Sliding doors (upper and lower) in tempered, flat, 4mm glass
Inferior finish in 430 stainless steel glossy
Laminated MDF options 15mm: Malaga, Tobacco, London, White and Black
Dimensions: Front (mm): 1340/1500/2000 Depth (mm): 750 Height (mm): 2000

Spec Sheet

APAS

AIPP

APC1000

APD1000

APT1000

APTE1000

1 2 3 4 5 6 7 8

Refrigerated Merchandisers

ASAC

Temperature: 3º to 10ºC
Refrigeration: Forced air
Temperature Control: Digital electronic controller
Lighting: LED
Internal case in steel painted in white
Sides in PSAI
4 levels of shelves in pre-painted white steel
Water collecting tray
Plastic night curtain
Feet with height adjustment
Colors: White / Light Grey / Black / Red / Yellow / Green / Blue
Dimensions: Front (mm): 900/1200 Depth (mm): 850 Height (mm): 1890

Spec Sheet – ASAC900
Spec Sheet – ASAC1200

VCM

Temperature: 0ºC to 7ºC
Refrigeration: Forced air
Digital temperature controller
LED lighting
Double glass door, tempered, low emissive Optional with heating
Internal and external cabinet in galvanized steel, painted in white. External back in galvanized steel
4/8/12/16/20 wire shelves with height adjustment
Inferior air inlet in PSAI vaccum forming color
Feet with height adjustment, optional on casters
Color options: Black / White / Gray / Blue / Green / Red
1 Door (600 Liters), 2 Doors (1300 Liters), 3 Doors, 4 Doors, 5 Doors
Dimensions: Front (mm): 718/1436/2180/2915/3650 Depth (mm): 740/770 Height (mm): 2080

VCCG

Temperature: -18ºC
Refrigeration: Forced air
Digital temperature controller
LED lighting
Double glass door, tempered, with resistance heating Pivoting opening system, with automatic closing
Top, bottom and handle finish colored injected PVC
Internal and external cabinet in steel painted in white External back in galvanized steel
5 levels of wire shelves with height and inclination adjustment
Inferior air inlet in colored PSAI vaccum forming
Feet with height adjustment, optional on casters
Color options: Black / White / Gray / Blue / Green / Red
1 Door (600 Liters) and 2 Doors (1300 Liters)
Dimensions: Front (mm): 718/1436 Depth (mm): 740 Height (mm): 2080

Spec Sheet

EIP2000VC

Chilled temperature: 0ºC to 7ºC.
Frozen temperature: -18ºC.
Refrigeration: static.
Temperature control: mechanical thermostat.
Internal and external galvanized steel cabinet, painted white with injected polyurethane thermal insulation.
External cabinet with personalized adhesive.
Wire mesh type partitions grids.
Helicoidal condenser (no need for frequent cleaning).
Feet with height adjustment.
Curved glass.
Top glass door in 4mm curved tempered glass with low emissions.
Outer cabinet finish with custom adhesive.
Wire-type sections dividers.
Spiral coin condenser.
Motor power (60hz): 1/3HP.

Spec Sheet

EIP3000VC

Chilled temperature: 0ºC to 7ºC.
Frozen temperature: -18ºC.
Refrigeration: static.
Temperature control: mechanical thermostat.
Top cover: 4mm curved tempered glass with low emissivity.
Internal and external galvanized steel cabinet, painted white with injected polyurethane thermal insulation.
External cabinet with personalized adhesive.
Wire mesh type partition grids.
Helicoidal condenser (no need for frequent cleaning).
Feet with height regulation.
Curved glass.
Outer cabinet finish with custom adhesive.
Wire-type section divisers.
Spiral coil condenser.
Motor power (60hz): 3/4HP.

Spec Sheet

1 2 3 4 5 6 7 8 9

Heated Displays

223c21_b730b35678e54d28a1dc3074986c27dc_mv2

Horizontal

Clean design with full view and all glasses are tempered glasses with high quality.
Internal LED lighting on the top and bottom that helps to highlight more exposed products.
Stainless steel trays to hold different types of warm foods.
Sliding glass doors on the back.
Side glasses with serigraphy treated thermally resistant to high temperatures.
Anodized aluminum front frame.
Its has an adjustable thermostat that allows food to be kept at an ideal temperature.
Tough stainless steel base.
Dimensions: 4,6,8,10,12 bandejas.

Vertical

Clean design with full view and all glasses are tempered glasses with high quality.
Internal LED lighting on the top and bottom that helps to highlight more exposed products.
Stainless steel trays to hold different types of warm foods.
Sliding glass doors on the back.
Side glasses with serigraphy treated thermally resistant to high temperatures.
Anodized aluminum front frame.
Its has an adjustable thermostat that allows food to be kept at an ideal temperature.
Tough stainless steel base.
Dimensions: 4,6,8,10,12 bandejas.

1 2 3 4 5

Gondolas

Flex 60 - Parede

Ideal for medium and large stores.
Practical and easy to assemble.
Double columns and special surface treatment.
Height-adjustable feet.
With a fitting system without the use of screws.
Adjustable trays every 4.5cm.
With a capacity of 60kg per tray, it is indicated for supermarkets, home centers, agricultural and utility stores.
The corner has no columns, serves as a connection between two rows of wall gondolas, needs 2 initial wall gondolas for support.
Height: 1.42m|1.70m|1.96m|2.23m|2.50m.
Width: 0.92m.
Base depth: 0.40m.
Bridge depht: 0.30m.
Capacity per tray: 60kg.
The number of trays varies according to height.
Color options: Black|White.
Label holder colors: Gray|White|Yellow|Black|Green|Orange|Red|Blue.

Flex 60 - Canto

Ideal for medium and large stores.
Practical and easy to assemble.
Double columns and special surface treatment.
Height-adjustable feet.
With a fitting system without the use of screws.
Adjustable trays every 4.5cm.
With a capacity of 60kg per tray, it is indicated for supermarkets, home centers, agricultural and utility stores.
The corner has no columns, serves as a connection between two rows of wall gondolas, needs 2 initial wall gondolas for support.
Height: 1.42m|1.70m|1.96m|2.23m|2.50m.
Width: 0.92m.
Base depth: 0.40m.
Bridge depht: 0.30m.
Capacity per tray: 60kg.
The number of trays varies according to height.
Color options: Black|White.
Label holder colors: Gray|White|Yellow|Black|Green|Orange|Red|Blue.

Flex 60 - Centro

Ideal for medium and large stores.
Double columns and special surface treatment.
With a fitting system without the use of screws.
Practical and easy to assemble.
Adjustable trays every 4.5cm.
Height-adjustable feet.
With a capacity of 60kg per tray, it is indicated for supermarkets, home centers, agricultural and utility stores.
The central gondolas are ideal to create central aisles in the establishment.
Initial gondola has 2 columns, essential to start a row of gondolas.
Continuation gondola has 1 column, used to continue the row of gondolas and cannot be assemble individually.
Height: 1.42m|1.70m|1.96m.
Width: 0.92m.
Base depth: 0.80m|1.00m.
Bridge depth: 0.70.|0.80m.
Capacity per tray: 60kg.
The number of trays varies according to height.
Color options: Black|White.
Label holder colors: Gray|White|Yellow|Black|Green|Orange|Red\Blue.

Flex 60 - Ponta

Ideal for medium and larges stores.
With a fitting system without the use of screws.
Double columns and special surface treatment.
Practical and easy to assemble.
Adjustable trays every 4.5cm.
Height-adjustable feet.
With a capacity of 60kg per tray, it is indicated for supermarkets, home centers, agricultural and utility stores.
The tip is used at the beginning and at the end of the rows of central gondolas, ideal to give finishing and highlight to the products.
Height: 1.42.|1.70m|1.96m.
Width: 0.78m|0.92m.
Base depth: 0.40m|0.50m.
Bridge depth: 0.35m|0.40m.
Capacity per tray: 60kg.
The number of trays varies according to height.
Color options: Black|White.
Label holder colors: Gray|White|Yellow|Black|Green|Orange|Red|Blue.

Flex 60 - Ponta Integrada

Ideal for medium and large stores.
With a fitting system without the use of screws.
Double columns and special surface treatment.
Practical and easy to assemble.
Adjustable trays every 4.5cm.
Height-adjustable feet.
With a capacity of 60kg per tray, it is indicated for supermarkets, home centers, agricultural and utility stores.
The integrated end is used at the beginning and at the end of the central gondolas rows, ideal to give finishing and highlight to the products.
The columns of the integrated end are joined by two crossbars forming a frame, which guarantees more resistance and stability in the entire gondola row.
The frame has a fixed column in the back, so only continuation gondolas will be used to form the central rows, dispensing with the use of initial gondolas, podium included.
Height: 1.42m|1.70m|1.96m.
Width: 0.78m|0.92m.
Trays depth: 0.35m|0.40m.
Capacity per tray: 60kg.
Podium: 400kg.
The number of trays varies according to height.
Color options: Black|White.
Label holder colors: Gray|White|Yellow|Black|Green|Orange|Red|Blue.

Gold - Parede

Ideal for a market that needs higher weight capacity without giving up design, quality and versatility for product display.
With a capacity of 80kg per tray, 25-pitch column, and SLG with three positions that allows the adjustment of the trays, straight or inclined, providing greater versatility in product display.
It is ideal for hypermarkets, supermarkets, bakeries, wholesalers, concept stores, and utilities in general.
The wall gondolas are ideal to be used at the ends of the establishment.
Initial Gondola has 2 columns, essential to start a row of gondolas.
Continuation Gondola has 1 column, used to continue the row of gondolas, and cannot be mounted individually.
Height: 1.20m|1.48m|1.75m|2.03m|2.30m.
Width: 0.98m|1.20m.
Base depth: 0.40m|0.50m.
Pandeys depth: 0.40m.
Capacity per tray: 80kg.
The number of trays varies according to height.
Color Options: Black|White.
Label Holder Colors: Gray|White|Yellow|Black|Green|Orange|Red|Blue.

Gold - Canto

Ideal for a market that needs higher weight capacity without giving up design, quality and versatility for product display.
With a capacity of 80kg per tray, 25-pitch column, and SLG with three positions that allows the adjustment of the trays, straight or inclined, providing greater versatility in product display.
It is ideal for hypermarkets, supermarkets, bakeries, wholesalers, concept stores, and utilities in general.
The corner has no columns, it serves as a connection between two rows of wall gondolas, and needs 2 initial wall gondolas for support.
Height: 1.20m|1.48m|1.75m|2.03m|2.30m.
Width: 0.82m.
Base depht: 0.40m|0.50m.
Pandeys depth: 0.40m.
Capacity per tray: 80kg.
The number of trays varies according to height.
Color Options: Black|White.
Label Holder Colors: Gray|White|Yellow|Black|Green|Orange|Red|Blue.

Gold - Centro

Ideal for a market that needs higher weight capacity without giving up design, quality and versatility for product display.
With a capacity of 80kg per tray, 25-pitch column, and SLG with three positions that allows the adjustment of the trays, straight or inclined, providing greater versatility in product display.
It is ideal for hypermarkets, supermarkets, bakeries, wholesalers, concept stores, and utilities in general.
The central gondolas are ideal to create central aisles in the establishment. Initial Gondola has 2 columns, essential to start a row of gondolas.
Continuation Gondola has 1 column, used to continue the row of gondolas, and cannot be assembled individually.
Height: 1.20m|1.48m|1.75m|2.03m.
Width: 0.98m|1.20m.
Base depth: 0.80m|1.00m.
Pandeys depth: 0.80m.
Capacity per tray: 80kg.
The number of trays varies according to height.
Color Options: Black|White.
Label Holder Colors: Gray|White|Yellow|Black|Green|Orange|Red|Blue.

Gold - Ponta Integrada

Ideal for a market that needs higher weight capacity without giving up design, quality and versatility for product display.
With a capacity of 80kg per tray, 25-pitch column, and SLG with three positions that allows the adjustment of the trays, straight or inclined, providing greater versatility in product display.
It is ideal for hypermarkets, supermarkets, bakeries, wholesalers, concept stores, and utilities in general.
The integrated end is used at the beginning and at the end of the rows of central shelves, ideal to give finishing and highlight to the products.
The columns of the integrated end are joined by two crossbars forming a frame, which ensures more resistance and stability throughout the gondola row.
The frame has a fixed column in the back, so only continuation gondolas will be used to form the central rows, dispensing with the use of initial gondolas, podium included.
Height: 1.20m|1.48m|1.75m|2.03m.
Width: 0.78m|0.98m.
Pandeys depth: 0.40m.
Capacity per tray: 80kg.
Podium: 400kg.
The number of trays varies according to height.
Color Options: Black|White.
Label Holder Colors: Gray|White|Yellow|Black|Green|Orange|Red|Blue.

1 2 3 4 5 6 7 8 9 10 11 12 13 14

1610480435-G0ND_CENTR0_C0NTINUACA0_FLEX_60_1,70_X_0,78

1610534196-G0ND_P0NTA_FLEX_60_1,70_X_0,78

1610534487-G0ND0LA_FLEX_40_P0NTA_INTEGRADA_1,70X0,78X0,30_LARANJA_(1)

1610534487-G0ND0LA_FLEX_40_P0NTA_INTEGRADA_1,70X0,78X0,30_LARANJA_(2)

1610475513-G0ND_CANT0_FLEX_60_1,70_X_0,78

1610480435-G0ND_CENTR0_INICIAL_FLEX_60_1,70_X_0,78_(PRET0_VERMELH0)

1610534195-G0ND_P0NTA_FLEX_60_1,70_X_0,78_(PRET0_VERMELH0)

1610534971-G0ND_P0NTA_FLEX_INTEGRADA_60_1,70_X_0,78_(PRET0_VERMELH0)

1610475514-G0ND_CANT0_FLEX_60_1,70_X_0,78_(PRET0_VERMELH0)

1610128208-P0NTA_3_FACES_1,98X1,00X0,60_02

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

WhatsApp Image 2021-07-27 at 11.12.08 (16)

WhatsApp Image 2021-07-27 at 11.12.08 (15)

Registers

Structure in pre-painted galvanized steel white, with sides in painted galvanized steel (colored)
Top in glossy stainless steel
Bumper profile in gray PVC with color detail
Color options:
Blue, Gray, Green, Red and Black.
Optionals:
Automation kit – monitor support and optical reader in pre-painted galvanized steel white
Support for scales built into the top.

Technical Drawing

1 2 3 4 5

Freezers

MCI1250

Temperature: 0ºC to 5ºC
Refrigeration: Forced air
Digital temperature controller
Internal galvanized steel cabinet
External cabinet (front and sides) in 430 stainless steel glossy
Base, back and external ceiling in galvanized steel
Adjustable feet
Optional: Storage system by hooks or shelves
Motor Power 60hz: 1/3 HP Volts: 127 or 220
Dimensions: Front (mm): 1000 Depth (mm): 1000 Height (mm): 2250

MCI1900

Chilled temperature: 0ºC to 5ºC
Frozen temperature: -18ºC
Refrigeration: Forced air
Digital temperature controller
Internal galvanized steel cabinet
External cabinet (front and sides) in 430 stainless steel glossy
Base, back and external ceiling in galvanized steel
Adjustable feet
Optional: Storage system by hooks or shelves
Motor Power 60hz: 1/2 HP Volts: 127 or 220
Dimensions: Front (mm): 1590 Depth (mm): 1000 Height (mm): 2250

MCI2900

Chilled temperature: 0ºC to 5ºC
Frozen temperature: -18ºC
Refrigeration: Forced air
Digital temperature controller
Internal galvanized steel cabinet
External cabinet (front and sides) in 430 stainless steel glossy
Base, back and external ceiling in galvanized steel
Adjustable feet
Optional: Storage system by hooks or shelves
Motor Power 60hz: 1 HP Volts: 127 or 220
Dimensions: Front (mm): 2390 Depth (mm): 1000 Height (mm): 2250

MCI4000

Cooling temperature: 0ºC to 5ºC
Refrigeration: Forced air.
Digital temperature controller.
Internal galvanized steel cabinet.
External cabinet (front and sides) in 430 stainless steel glossy.
Injected polyurethane thermal insulation 50mm thick.
Base, back and external ceiling in galvanized steel.
Adjustable feet.

Optional:

Single or double door on the sides.
Storage system by hooks or shelves.
Internal cabinet in glossy 430 stainless steel.
Internal and/or external cabinet in stainless steel 304.
Single door positioned on the largest side.
Double doors positioned on the long side.
Double doors positioned in the front and on the long side.
Storage system with hooks – with 7 upper tubes and 2 lower tubes in virgin galvanized steel.
Storage system with shelves – with 4 shelves in galvanized steel, with 4 levels of shelves each, perforated with height.
Height adjustment by fitting system in columns.
Engine power 60hz: 1 HP Volts: 127 or 220.
Dimensions: Front (mm): 1210 Depth (mm): 2100 Height (mm): 2510

MCICG4000

Freezing temperature: -18°C.
Refrigeration: forced air.
Digital temperature controller.
Internal cabinet in galvanized steel.
External cabinet (front and sides) in 430 stainless steel glossy.
Injected polyurethane thermal insulation 50mm thick.
Base, back and external ceiling in galvanized steel.
Adjustable feet.

Optional:

Single or double door on the sides.
Storage system by hooks or shelves.
Internal cabinet in glossy 430 stainless steel.
Single door positioned on the largest side.
Double doors positioned on the long side.
Double doors positioned in the front and on the long side.
Storage system with hooks – with 7 upper tubes and 2 lower tubes in virgin galvanized steel.
Storage system with shelves – with 4 shelves in galvanized steel, with 4 levels of shelves each, perforated with height.
Height adjustment by fitting system in columns.
Motor Power 60hz: 1 1/4 HP Volts: 127 or 220
Dimensions: Front (mm): 1210 Depth (mm): 2100 Height (mm): 2510

Spec Sheet

MCIEXF4000

Extra cold temperature: -5ºC.
Refrigeration: forced air.
Digital temperature controller.
Internal galvanized steel cabinet.
External cabinet (front and sides) in 430 stainless steel glossy.
Injected polyurethane thermal insulation 50mm thick.
Base, back and external ceiling in galvanized steel.
Adjustable feet.

Optional:

Single or double doors on the sides.
Storage system by hooks or shelves internal cabinet in glossy 430 stainless steel.
Internal and/or external cabinet in stainless steel 304.
Single door positioned on the largest side.
Double doors positioned on the long side.
Double doors positioned in the front and on the long side.
Storage system with hooks – with 7 upper tubes and 2 lower tubes in virgin galvanized steel.
Storage system with shelves – with 4 shelves in galvanized steel, with 4 levels of shelves each, perforated with height.
Height adjustment by fitting system in columns.
Motor Power 60hz: 1 1/4 HP Volts: 127 or 220
Dimensions: Front (mm): 1210 Depth (mm): 2100 Height (mm): 2510

Spec Sheet

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

mci4000-1-porta-lateral-1-porta-frontal1608643714

Produce Displays

FC1500

Central fruit basket

Structure 100% in laminated MDF 15mm
Adjustable feet.

Spec Sheet

FC2700

AIPP

1 2 3 4

Air Curtain Merchandisers

VCM

Temperature: 0ºC to 7ºC
Refrigeration: Forced air
Digital temperature controller
LED lighting
Double glass door, tempered, low emissive Optional with heating
Internal and external cabinet in galvanized steel, painted in white. External back in galvanized steel
4/8/12/16/20 wire shelves with height adjustment
Inferior air inlet in PSAI vaccum forming color
Feet with height adjustment, optional on casters
Color options: Black / White / Gray / Blue / Green / Red
1 Door (600 Liters), 2 Doors (1300 Liters), 3 Doors, 4 Doors, 5 Doors
Dimensions: Front (mm): 718/1436/2180/2915/3650 Depth (mm): 740/770 Height (mm): 2080

VCCG

Temperature: -18ºC
Refrigeration: Forced air
Digital temperature controller
LED lighting
Double glass door, tempered, with resistance heating Pivoting opening system, with automatic closing
Top, bottom and handle finish colored injected PVC
Internal and external cabinet in steel painted in white External back in galvanized steel
5 levels of wire shelves with height and inclination adjustment
Inferior air inlet in colored PSAI vaccum forming
Feet with height adjustment, optional on casters
Color options: Black / White / Gray / Blue / Green / Red
1 Door (600 Liters) and 2 Doors (1300 Liters)
Dimensions: Front (mm): 718/1436 Depth (mm): 740 Height (mm): 2080

Spec Sheet

ASAC

1 2 3 4 5 6 7

Display Cases

Bolton Line

FEATURES

– Refrigeration system keeps products at safe temperatures between 32°F and 40°F

– 2 Sliding glass doors

– Bright internal LED lighting on top and under each shelf

– 2 adjustable glass shelves

– Digital temperature control and display

– Dual-pane tempered glass

– 2″ Castors with brakes

– Automatic Defrost

– Eco-friendly R290 refrigerant

– Condenser coil is easy to access for cleaning and service

– We have refrigerated, dry and hot.

Spec Sheet – Refrigerated

Spec Sheet – Dry

Spec Sheet – Hot

Lincoln Line

FEATURES

– Refrigeration system keeps products at safe temperatures between 32°F and 40°F

– 2 Sliding glass doors

– Bright internal LED lighting on top and under each shelf

– 2 adjustable glass shelves

– Digital temperature control and display

– Dual-pane tempered glass

– 2″ Castors with brakes

– Automatic Defrost

– Eco-friendly R290 refrigerant

– Condenser coil is easy to access for cleaning and service

– We have refrigerated, dry and hot.

Spec Sheet – Refrigerated

Spec Sheet – Dry

Spec Sheet – Hot

Portland Line

FEATURES

– Refrigeration system keeps products at safe temperatures between 32°F and 40°F

– 2 Sliding glass doors

– Bright internal LED lighting on top and under each shelf

– 2 adjustable glass shelves

– Digital temperature control and display

– Dual-pane tempered glass

– 2″ Castors with brakes

– Automatic Defrost

– Eco-friendly R290 refrigerant

– Condenser coil is easy to access for cleaning and service

– We have refrigerated, dry and hot.

Spec Sheet – Refrigerated

Spec Sheet – Dry

Spec Sheet – Hot

Super Top Platinum

LED Lighting
Refrigeration: Forced Air
Digital temperature controller
Internal and external cabinet in 430 stainless steel glossy
Shelves in glass 3.15mm flat, tempered
Rear doors in double glass chamber, flat, tempered
Frontal finishing in aluminum profile
Curved glass front, tempered, with resistance heating
Brushed stainless steel base
Adjustable feet
Dimensions: Front (mm): 1000/1500/2000 Depth (mm): 900 Height (mm): 1270

Spec Sheet

New Titanium

Temperature: 3ºC to 10ºC
Refrigeration: Forced air
Digital temperature controller
LED lighting
Internal and external cabinet in 430 stainless steel glossy
Bottom shelf (base) in 430 glossy stainless steel
Sides, top and front in double glass chamber, flat and tempered
Rear doors in glossy stainless steel with thermal insulation in injected polyurethane
Adjustable legs
Optional: internal finish in steel painted in white or black
Dimensions: Front (mm): 600/1000/1500/2000 Depth (mm): 650 Height (mm): 1325

Spec Sheet

Panoramica

Mechanical thermostat
Cooling system with a cold plate
LED lighting (optional)
Internal and external cabinet in white painted galvanized steel
External basement lining in white painted galvanized steel
Sides in PSAI with glass detail
Rear doors in white pre-painted galvanized steel
One shelf level with racks and one level with roll bond cold plate
Adjustable feet
Dimensions: Front (mm): 1000/1200/1500/1800/2000 Depth (mm): 700 Height (mm): 1200

1 2 3 4 5 6 7 8 9 10 11 12 13

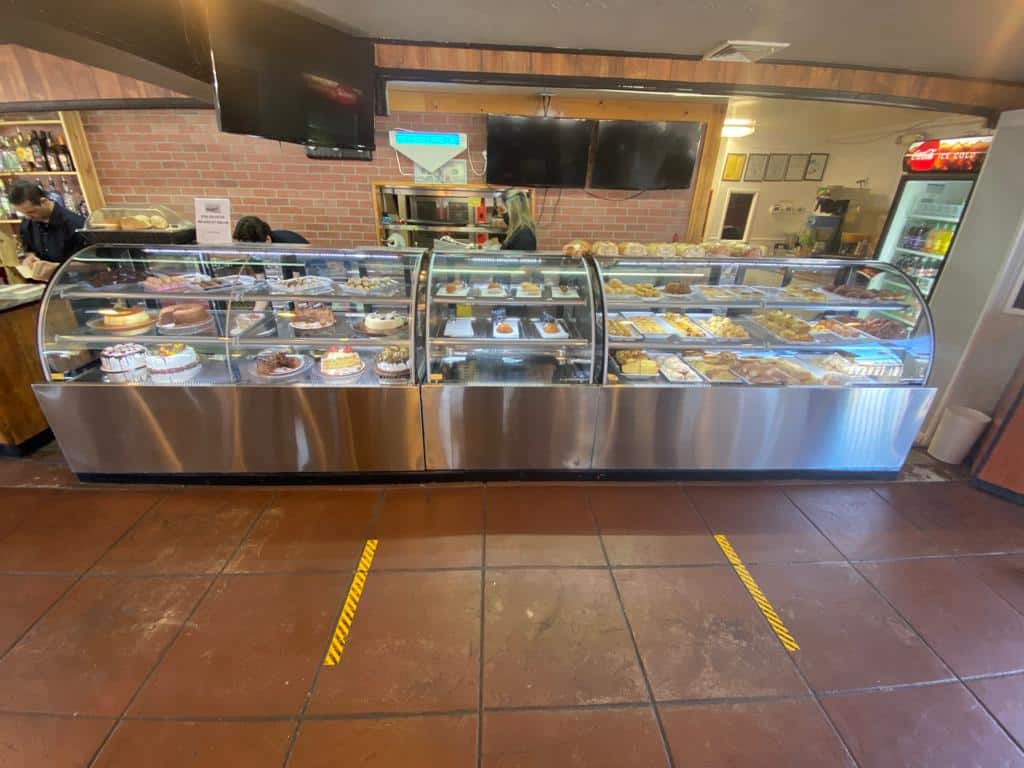

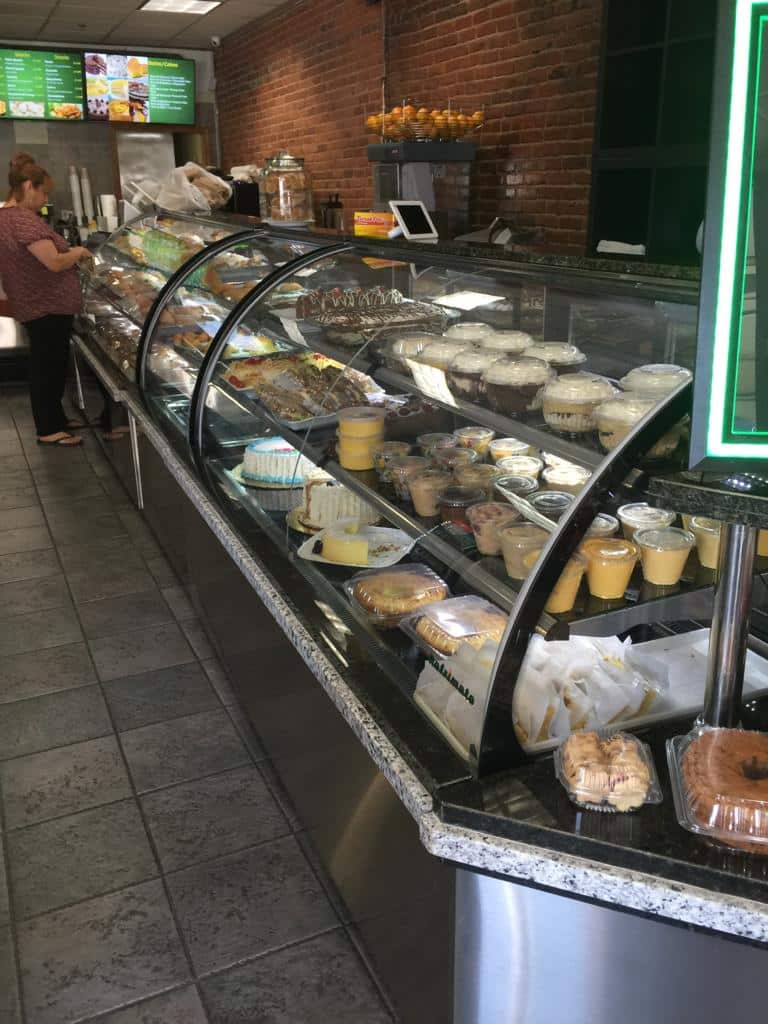

Our Work

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
